PV2R12/13/14双联叶片泵

PV2R系列专为低噪音运行工况研发的定量叶片泵，低噪音、节能高效、性能优越。PV2R单泵输出排量范围广，可达 5.8～237cm³/ 转。为适配各类设备应用场景。

应用领域：

压力机、剪板机、制鞋机械、拉床、注塑机、压铸机、管材成型折弯机、枪钻机床、弯锯机、渔网动力牵引机、包装机械、圆锯机、聚氨酯发泡机、橡胶密炼挤出设备、重型钢铁工业设备等。

• 订购代码
• 产品尺寸
• 参数

• PV2R12 ordering code:
• PV2R13 ordering code:
• PV2R14 ordering code:

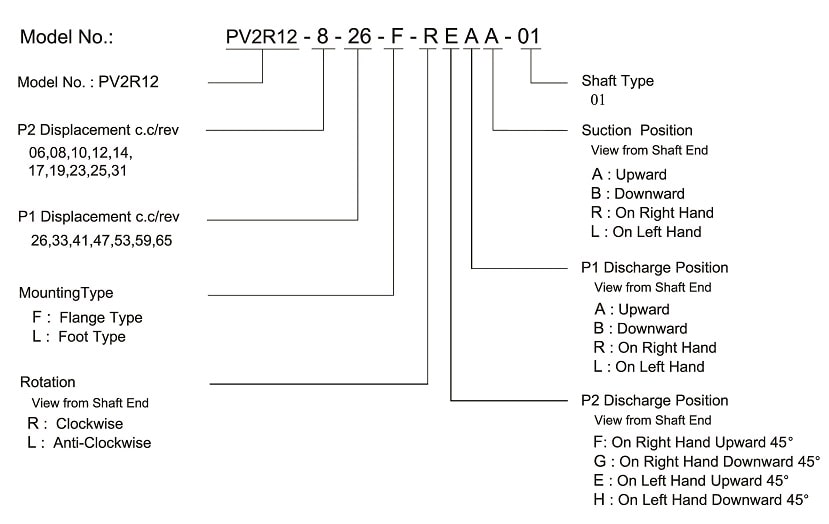

PV2R12 ordering code:

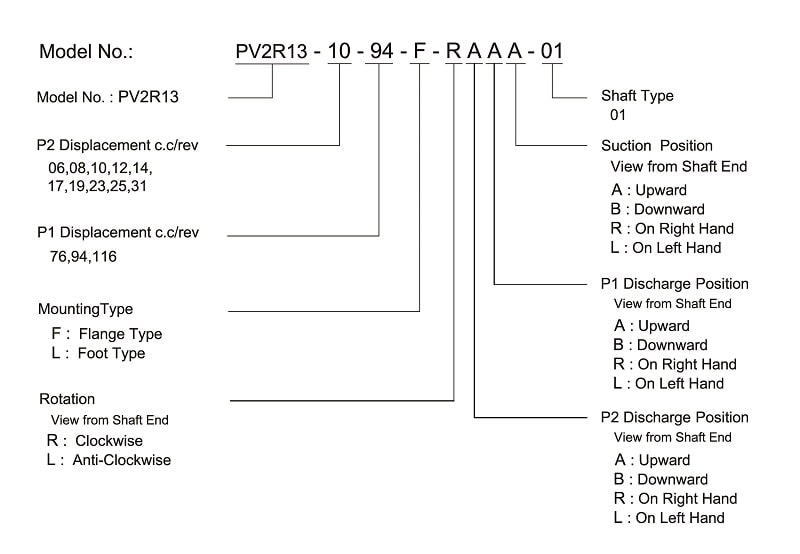

PV2R13 ordering code:

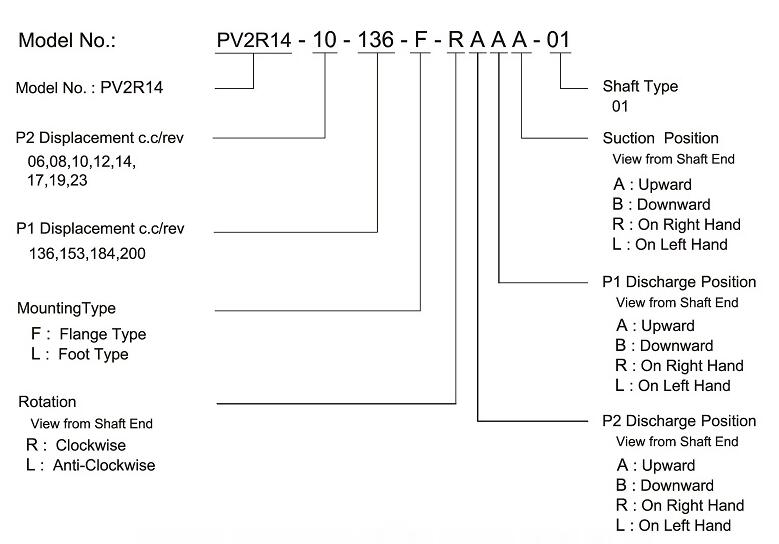

PV2R14 ordering code:

• PV2R12 Dimension:
• PV2R13 Dimension:
• PV2R14 Dimension:

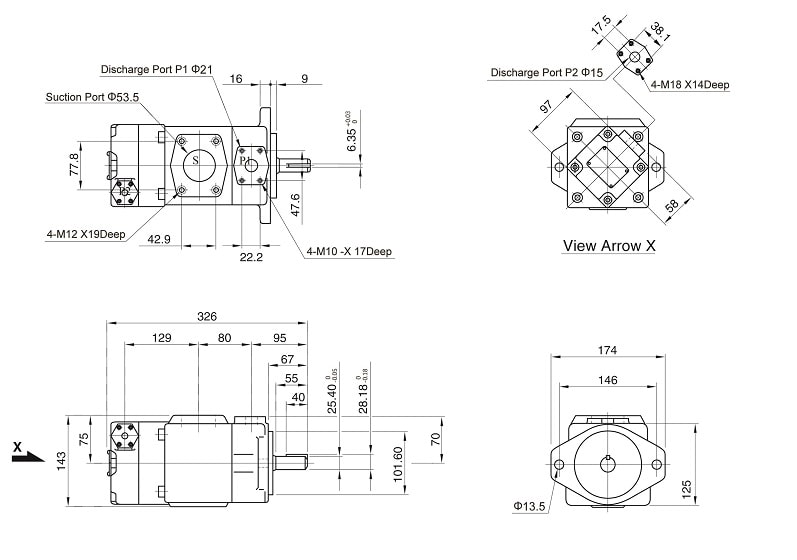

PV2R12 Dimension:

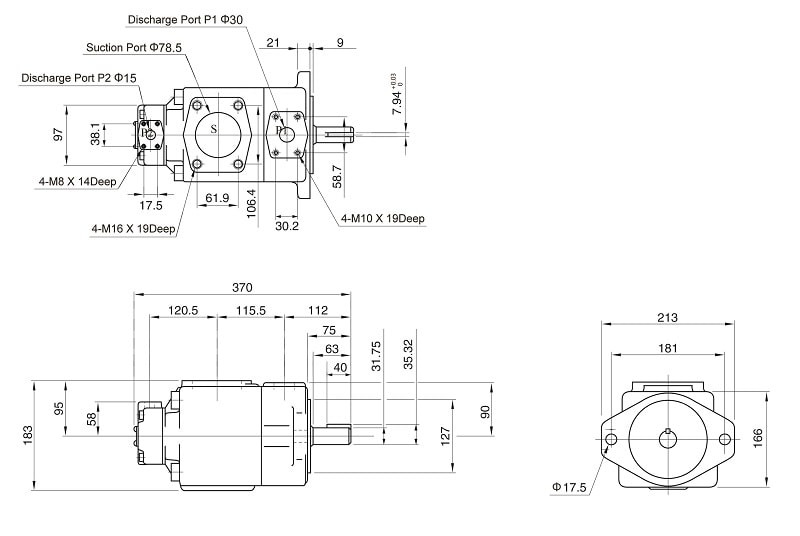

PV2R13 Dimension:

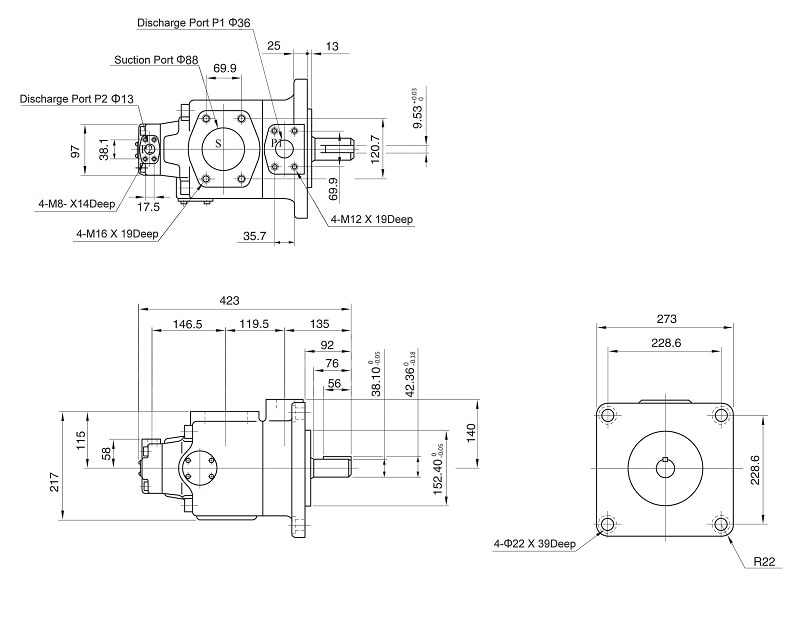

PV2R14 Dimension:

Series	Nomindal Displacement	Max. Operating Pressure   (MPa)
		Petroleum Based Oil		Water Containing Fluids		Synthetic fluids
	cc/rev	Antiwear Type	R & O Type	Water Glycols	Water in Oil Emulsions	Phosphate Esters
R1	6	21	16	7	7	16
	8
	10
	12
	14
	17
	19
	23
	25
	31	16
R2	26	21	14	7	7	14
	33
	41
	47
	53
	59
	65
	75	16
R3	52	21	14	7	7	14
	60
	66
	76
	85
	94
	116	16
R4	136	17.5	14	7	7	14
	153
	184
	200
	237
